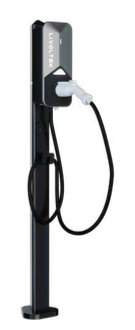

Smart Charger for Electric Vehicles

The LIVOLTEK smart EV charger is the most advanced smart charger available for wall-mounted and column installations. It is compact in size, elegant in appearance, and easy to install. With its user-friendly app, it is simple for users to charge independently and economically. It is definitely the best choice for electric vehicle owners to charge their vehicles by taking advantage of time-of-use tariffs and photovoltaic systems.

Features

  • Single Phase: 7.3kW
  • Trifase: 11kW/22kW
  • Integrated RCD protection
  • Low energy consumption in standby mode
  • 3 charging modes: rapid, dynamic, ECO
  • Real-time load management and demand response
  • IP54 protection level ensures high adaptability
  • Compatible with all branded EVs
  • Wi-Fi/4G/Ethernet communication
  • OCPP compliance allows backend system integration
Love0

Description

Specifications

Model A0070230E11 A0110400E11 A0220400E11
Product Name Single-phase IEC Standard AC EV Charger Three-phase IEC Standard AC EV Charger Three-phase IEC Standard AC EV Charger
Input/Output
Rated Power 7.3kW 11kW 22kW
Rated Voltage 230Vac±10% 400Vac±10% 400Vac±10%
Rated Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Current Range 6~32A 6~16A 6~32A
Charging Interface Type Type 2/5m Type 2/5m Type 2/5m
Specifications of Incoming Cables 3*6mm² 5*2.5mm² 5*6mm²
Basic Features
Way of Starting Plug & Charge/Bluetooth/Remote/Schedule/App(RFID Optional) Plug & Charge/Bluetooth/Remote/Schedule/App(RFID Optional) Plug & Charge/Bluetooth/Remote/Schedule/App(RFID Optional)
Noise 0dB 0dB 0dB
Operating Temperature -30℃ ~ 50℃ -30℃ ~ 50℃ -30℃ ~ 50℃
Storage Temperature -40℃ ~ 70℃ -40℃ ~ 70℃ -40℃ ~ 70℃
Operating Humidity 5% ~ 95%RH 5% ~ 95%RH 5% ~ 95%RH
Operating Altitude Below 2000m Below 2000m Below 2000m
IP Degree IP54 IP54 IP54
Dimension (W*H*D) 170*400*110mm 170*400*110mm 170*400*110mm
Weight 3.7kg 3.8kg 5.1kg
Way of Installation Wall Mounting (Column Optional) Wall Mounting (Column Optional) Wall Mounting (Column Optional)
Energy Management Support Support Support
Standby Power Consumption <10W <10W <10W
Standard Warranty 10 Years 10 Years 10 Years
Other Features
Status Indication 3 Color LED 3 Color LED 3 Color LED
Firmware Upgrade Local/OTA Local/OTA Local/OTA
Way of Communication Bluetooth/Wi-Fi/Ethernet/4G (Optional) Bluetooth/Wi-Fi/Ethernet/4G (Optional) Bluetooth/Wi-Fi/Ethernet/4G (Optional)
Emergency Stop Protection Support Support Support
Save Charging Record When Power Off Support Support Support
Electricity Measurement Support Support Support
External Communication RS485/CAN RS485/CAN RS485/CAN
Communication Protocol OCPP 1.6 OCPP 1.6 OCPP 1.6
Protection Function
Residual Current Protection 30mA type A RCBO External/6mA DC RCD Internal 30mA type A RCBO External/6mA DC RCD Internal 30mA type A RCBO External/6mA DC RCD Internal
Multiple Protection With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection, Fault Self-check and Other Multiple Protection Functions. With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection, Fault Self-check and Other Multiple Protection Functions. With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection, Fault Self-check and Other Multiple Protection Functions.
Standard
EMC IEC-61851-21-2-2018 IEC-61851-21-2-2018 IEC-61851-21-2-2018
Safety IEC-61851-1-2017 IEC-61851-1-2017 IEC-61851-1-2017
